As a leading China custom hydraulic cylinder supplier factory, specializing in the production and sale of diverse hydraulic cylinders, Younglee stands at the forefront of the industry. We are proud to be expert hydraulic cylinder manufacturers and reliable hydraulic cylinder suppliers, offering high-performance solutions tailored precisely to your operational needs. If you’re seeking bespoke hydraulic solutions, our custom hydraulic cylinders are engineered with meticulous precision, unyielding quality, and unmatched expertise, solidifying our reputation among top China hydraulic cylinders supplier.
Precision-Engineered Custom Hydraulic Cylinders by Younglee: Detailed Technical Specifications
At Younglee, we understand that standard solutions often fall short in complex applications. With decades of experience in the hydraulic cylinder industry, we specialize in custom hydraulic cylinders designed to meet the unique demands of industries worldwide. Our commitment to excellence ensures that whether you require large-scale, highly specialized, or precision-focused units, Younglee delivers.
We produce and supply a wide range of custom hydraulic cylinders, each engineered with specific technical parameters for optimal performance:

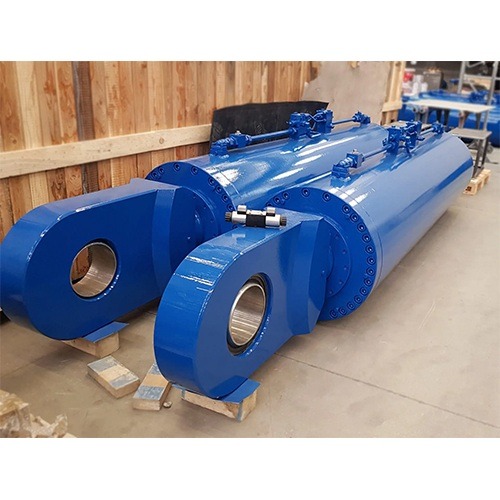

1. Heavy-Duty & Large Custom Hydraulic Cylinders
Engineered for the most demanding applications in construction, mining, and heavy industrial machinery, our heavy-duty and large-scale custom hydraulic cylinders are built to withstand extreme loads and harsh operating conditions.
- Bore Sizes: Ranging from Φ150 mm (approx. 6 inches) up to Φ600 mm (approx. 24 inches) and beyond, accommodating substantial force requirements.
- Rod Diameters: Typically from Φ70 mm to Φ400 mm, designed for high buckling resistance under heavy loads.
- Stroke Lengths: Customizable up to 15,000 mm (590 inches) to meet specific operational reach.
- Working Pressure: Standard up to 25 MPa (3625 PSI), with options for higher pressures based on application.
- Materials: Cylinder barrels typically in high-strength carbon steel (e.g., ST52, E355, 4140) or stainless steel; piston rods often in induction hardened and hard chrome plated CK45, SAE 1045, or SAE 4140 for superior wear resistance.
- Mounting Styles: Clevis mount, trunnion mount, flange mount (front/rear), foot mount, spherical bearing mount, and custom designs.
- Applications: Excavators, cranes, bulldozers, heavy mining machinery, and industrial presses.
2. Specialized & High-Pressure Custom Hydraulic Cylinders
Our specialized custom hydraulic cylinders are designed for unique operational environments, including ultra-high pressure, extreme temperature, or highly corrosive settings. These units are meticulously engineered for reliability and performance in critical applications.
- Working Pressure: Engineered to withstand pressures up to 70 MPa (10,000 PSI) or even higher for specific designs.
- Temperature Resistance: Designed to operate efficiently in extreme temperature ranges from −40∘C to +150∘C, utilizing specialized seals (e.g., Viton, PTFE).
- Corrosion Resistance: Constructed from specific stainless steel grades (e.g., 304, 316, Duplex) or incorporating specialized coatings like nickel-chrome plating for enhanced protection in marine, offshore, or chemical processing environments.
- Sealing Systems: Advanced, low-friction sealing solutions, including compact seals, multi-lip seals, and custom-engineered sealing arrangements to prevent leakage under extreme conditions.
- Custom Designs: Fully tailored to meet precise dimensional and functional specifications, including integrated sensors or specialized valving.
- Applications: Marine ship steering systems, oil and gas drilling rigs, subsea equipment, aerospace landing gear, and high-force actuators in specialized industrial settings.
3. Precision Custom Hydraulic Cylinders
For applications demanding the highest standards of accuracy, consistency, and repeatability, our precision custom hydraulic cylinders are manufactured with meticulous attention to detail to ensure exacting performance criteria.
- Tight Tolerances: Machined to exceptionally precise specifications, often with bore concentricity and rod straightness within ±0.02 mm over standard lengths for accurate operation.
- Surface Finish: Honed cylinder bores to achieve a surface roughness (Ra) as low as $0.2 \text{ \mu m}$, and chrome plated rods polished to $Ra < 0.2 \text{ \mu m}$ for minimal friction and extended seal life.
- Integrated Feedback: Options for integrated linear transducers (e.g., LVDT, magnetostrictive sensors) for real-time position feedback, enabling precise control.
- Smooth Operation: Utilizing advanced machining techniques and high-quality internal components to ensure smooth, consistent, and low-stiction performance.
- Quality Assurance: Subjected to rigorous testing, including pressure holding tests, leak tests, and functional cycle tests, to ensure unwavering reliability and consistency.
- Applications: Automotive suspension testing systems, aerospace control mechanisms, industrial robotics, and automation equipment requiring precise motion control.
Other Common Custom Hydraulic Cylinder Types We Supply
Beyond these specialized categories, Younglee, as a versatile hydraulic cylinder manufacturer, also excels in producing other fundamental and widely used custom hydraulic cylinders:
Single-Acting Hydraulic Cylinders:
Designed for force in one direction, typically using gravity or an external load for retraction.
Younglee factory’s single acting cylinders use hydraulic pressure to move in one direction (usually extend), and a return spring or external load to retract. They are typically used in simpler or low-duty applications.
Specifications of single acting hydraulic cylinders:
- Bore size: 50 mm – 350 mm
- Stroke: Up to 3500 mm
- Working pressure: 100 – 210 bar
- Return method: Spring return or gravity
- Mounting: Flange, clevis
Double-Acting Hydraulic Cylinders:
Double acting hydraulic cylinders apply force in both extension and retraction strokes, using hydraulic pressure to extend and retract the piston, providing full control of movement. These are ideal for applications that require controlled motion in both directions.
Specifications of our double acting hydraulic cylinders:
- Bore size: 50 mm – 600 mm
- Stroke: Up to 10000 mm
- Working pressure: 160 – 350 bar
- Mounting: Clevis, flange, side lugs
- Rod options: Single rod or double rod
Telescopic Hydraulic Cylinders
They are also known as multi-stage cylinders, that extend to very long strokes from a compact retracted length. This type of hydraulic cylinders are ideal for applications requiring extended reach, such as dump trucks, lifting equipment, cranes, and aerial work platforms.
Specifications of our telescopic hydraulic cylinders:
- Stages: 2 to 6 stages
- Extended stroke: Up to 15000 mm
- Bore size (main stage): 60 mm – 600 mm
- Working pressure: 160 – 350 bar
- Applications: dump trucks, Lifting, tilting, loading systems
Tie-Rod Hydraulic Cylinders:
They are characterized by external tie rods holding the end caps to the cylinder barrel, making them easily repairable. Younglee factory’s tie-rod cylinders use high-strength steel tie rods to hold the cylinder ends in place. They are commonly used in industrial machinery due to their modular design and ease of maintenance.
Specifications of tie rod hydraulic cylinders
- Bore size: 50 mm – 600 mm
- Stroke length: Up to 6000 mm
- Working pressure: Up to 210 bar (3000 psi)
- Mounting types: Flange, foot, clevis, trunnion
- Rod diameter: 20 mm – 200 mm
Welded Hydraulic Cylinders
Our custom welded hydraulic cylinders are compact and durable. The end caps are welded directly to the cylinder barrel, offering a stronger and more space-efficient design. Common in mobile and heavy-duty applications.
Specifications of our welded hydraulic cylinders
- Bore size: 50 mm – 800 mm
- Stroke length: Up to 10000 mm
- Working pressure: Up to 350 bar (5000 psi)
- Rod diameter: 20 mm – 300 mm
Plunger (Ram) Type Cylinders
Ram hydraulic cylinders are simple, single-acting cylinders with a solid piston (plunger) and no piston seals. Ideal for heavy lifting and jacking applications.
Main Specifications of our Plunger hydraulic cylinders
- Bore size: 60 mm – 1000 mm
- Stroke: Up to 10000 mm
- Working pressure: Up to 700 bar
- Usage: Lifting platforms, presses, construction jacks
Why Choose Younglee as Your Hydraulic Cylinder Manufacturer?
As a trusted name among hydraulic cylinder manufacturers and hydraulic cylinder suppliers, Younglee provides unparalleled value through our commitment to quality, innovation, and customer satisfaction.
- Unmatched Expertise: With decades of experience, our team of engineers and technicians possesses the profound knowledge and skills to tackle even the most complex hydraulic cylinder challenges.
- Comprehensive Quality Management: We adhere strictly to ISO-certified standards throughout our manufacturing process. From raw material selection to final inspection, every step is meticulously monitored to ensure optimal performance and reliability for all our China hydraulic cylinders.
- State-of-the-Art Manufacturing Facilities: Our fully equipped production facilities enable us to handle large-scale and highly specialized projects with precision and efficiency, ensuring the highest quality custom hydraulic cylinders.
- Premium Raw Materials: We source high-quality raw materials for our hydraulic cylinder barrels (e.g., honed tubing), rods (e.g., chrome plated shafts), and other components from renowned Chinese steel makers like TPCO, SHA STEEL, and BAO STEEL. This commitment to superior materials guarantees the durability and long service life of every hydraulic cylinder we produce.
- Competitive Pricing: As both hydraulic cylinder manufacturers and hydraulic cylinder suppliers, we offer cost-effective solutions without compromising on quality. Our streamlined processes and in-house manufacturing of core components like honed tubes and chrome-plated bars contribute to highly competitive pricing for our custom hydraulic cylinders.
- Fast and Reliable Delivery: Understanding the importance of timely project completion, our efficient production and logistics systems ensure your custom hydraulic cylinders are delivered on schedule, every time.
- Customer-Centric Approach: We collaborate closely with our clients, delving into their specific needs to provide truly tailored solutions. Our dedication to customer satisfaction has fostered long-term partnerships across diverse industries.
Partner with Younglee for Your Custom Hydraulic Cylinder Needs
At Younglee, we are dedicated to delivering custom hydraulic cylinders that not only meet but exceed expectations in performance, durability, and reliability. Whether your project demands a standard design or a highly specialized solution, our expertise and resources are at your disposal.
Contact us today to discuss your project. Discover how Younglee, as a leading China hydraulic cylinder manufacturer and hydraulic cylinder supplier, can drive the success of your operations with our precision-engineered custom hydraulic cylinders.
