When it comes to concrete pumping, having high-quality pump cylinders is essential for ensuring smooth and efficient delivery of concrete. As a leading concrete pump delivery cylinder supplier, we specialize in manufacturing top-of-the-line concrete pump delivery cylinders that are designed to meet the demands of any construction project. Our high-quality concrete pumping delivery cylinder tubes are suitable for various famous brands such as Schwing, Sany, Putzmeister, Zoomlion, and so on. These cylinders are crafted using top-grade materials and advanced techniques to ensure superior performance.
Here below is the detailed introduction of Concrete Delivery Cylinders.
WHAT IS DELIVERY CYLINDER?

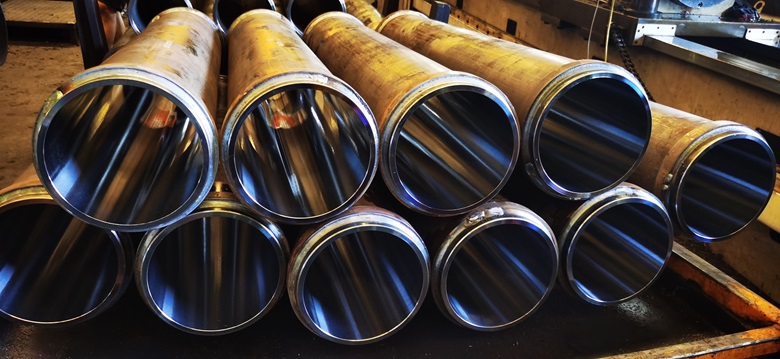

The delivery cylinder is a crucial component of a concrete pump system, responsible for pushing the concrete mixture through the pump and into the placement area with the necessary pressure and force. Typically made of a high-quality hydraulic cylinder tube, also known as Chrome Plated ID tube, the delivery cylinder works in tandem with the pump’s hydraulic system to create the pumping action that propels the concrete. Investing in high-quality cylinders is essential for smooth and efficient operation, reducing the risk of breakdowns and delays in the pumping process.
These cylinders are designed to withstand the high pressures and abrasive nature of concrete pumping, ultimately prolonging the lifespan of the pump system and reducing maintenance costs. Ensuring the reliability and performance of a concrete pump in various construction projects hinges on the quality of the delivery cylinder.
INTRODUCTION OF OUR CONCRETE DELIVERY CYLINDERS
Our concrete pump delivery cylinders are made from durable materials that can withstand the rigors of heavy-duty use. Whether you are working on a small residential project or a large commercial construction site, our cylinders are built to deliver consistent performance and reliability.

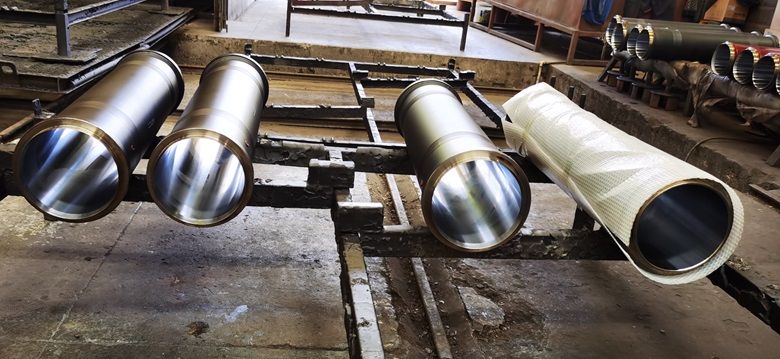

CONCRETE PUMP DELIVERY CYLINDER DATA CHART
| Model Number: | Concrete Pump Delivery Cylinder DN150 DN180 DN200 DN230 DN260 |
| Products name | Concrete pump delivery cylinder /material cylinder |
| Material | Quality steel (ST52.3/ E355/S355) + Super thick chrome plating |
| Cylinder Diameter | 100mm, 150mm,180mm, 200mm, 230mm, 250mm, 260mm |
| Length | 1070mm to 2635mm |
| Chrome plate layer thickness | 0.20mm, 0.25mm, 0.30mm, 0.26~0.33mm, other upon request. |
| Inner diameter Roughness | Max Ra 0.2μm |
| Hardness on chromium plating surface | HV900 |
| Service Life | >80000m3 |
| Application | Concrete Pump, Material Cylinder, Trailer Pump, Line Pump |

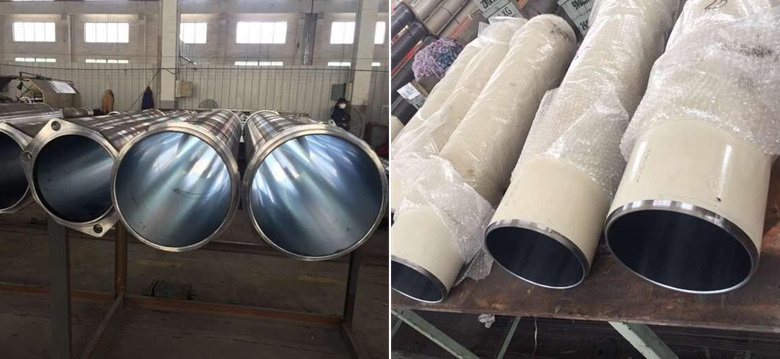

CONCRETE PUMP DELIVERY CYLINDER SIZES
As one of a professional delivery cylinder suppliers and delivery cylinder suppliers, our company manufacturer and supply a wide range of delivery cylinder tubes / concrete pump delivery cylinders for various brands of concrete trucks, such as below list.
SCHWING Delivery Cylinder Sizes
| Outer Diameter | Inner Diameter | Length | Travel |
|---|---|---|---|
| 251mm | 230 mm | 2125 mm | 2000 mm |
| 270mm | 250 mm | 2635 mm | 2500 mm |
| 270mm | 250 mm | 2135 mm | 2000 mm |
| 251mm | 230 mm | 2133 mm | 2000 mm |
| 219mm | 200 mm | 2125 mm | 2000 mm |
| 219mm | 200 mm | 1775 mm | 1600 mm |
| 210mm | 180 mm | 2125 mm | 2000 mm |
| 200mm | 180 mm | 1520 mm | 1400 mm |
| 200mm | 180 mm | 1175 mm | 1000 mm |
| 196mm | 180 mm | 1320 mm | 1200 mm |
| 168mm | 150 mm | 1320 mm | 1200 mm |
Other sizes of Schwing delivery cylinder are also available on request.
PUTZMEISTER DELIVERY CYLINDER SIZES | |||
| Outer Diameter(mm) | Inner Diameter(mm) | length(mm) | Travel(mm) |
| 305 | 280 | 2355 | 2200 |
| 278 | 250 | 2710 | 2500 |
| 278 | 250 | 2310 | 2100 |
| 254 | 230 | 2320 | 2100 |
| 254 | 230 | 1600 | 1400 |
| 219 | 200 | 2305 | 2100 |
| 219 | 200 | 1585 | 1400 |
| 203 | 180 | 2305 | 2100 |
SANYI DELIVERY CYLINDER SIZES | |||
| Outer Diameter(mm) | Inner Diameter(mm) | length(mm) | Travel(mm) |
| 280 | 260 | 2345 | 2200 |
| 280 | 260 | 2245 | 2100 |
| 280 | 260 | 2145 | 2000 |
| 280 | 260 | 2045 | 1900 |
| 258 | 230 | 2146 | 2000 |
| 258 | 230 | 1946 | 1800 |
| 258 | 230 | 1746 | 1600 |
| 226 | 200 | 1946 | 1800 |
| 226 | 200 | 1746 | 1600 |
| 226 | 200 | 1546 | 1400 |

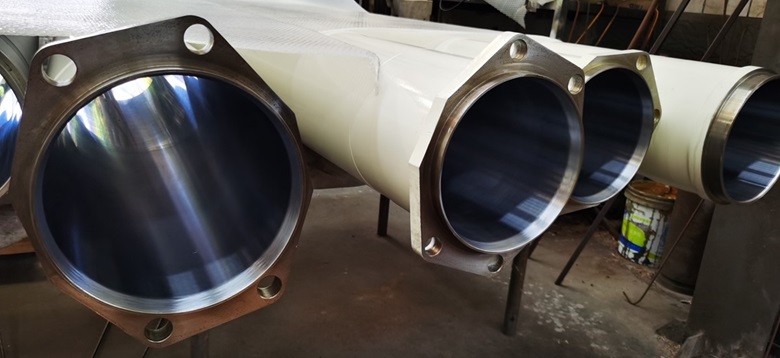

ZOOMLION DELIVERY CYLINDER TUBE SIZES | |||
| Outer Diameter(mm) | Inner Diameter(mm) | length(mm) | Travel(mm) |
| 280 | 260 | 2250 | 2100 |
| 250 | 230 | 2250 | 2100 |
| 258 | 230 | 1800 | 1600 |
| 219 | 200 | 1960 | 1800 |
| 219 | 200 | 1800 | 1600 |
| 219 | 200 | 1587 | 1400 |
Other sizes are also available upon customers’ request, simply contact us for more details.
Besides metric sizes, we also manufacturer and supply wide range of imperial size (inch sizes) of delivery cylinders / convey cylinders, such as 3.75″ x 9.5″ delivery cylinder, 6″ x 39″ delivery cylinder, and so on.
OUR CONCRETE PUMP DELIVERY CYLINDER CAN BE USED FOR A WIDE RANGE OF BRAND NAME, SUCH AS:
Schwing, Sany, Putzmeister, Zoomlion, Kyokuto, Mitsubishi, Nigata, Ihisce and so on.
DELIVERY CYLINDER TUBE / DELIVERY CYLINDER APPLICATIONS
Concrete delivery cylinders are used in the construction industry for various applications, including:
1. Pouring concrete in hard-to-reach or high-rise locations: Concrete delivery cylinders can be used to transport concrete to areas that are difficult to access, such as high-rise buildings or narrow spaces.
2. Precise placement of concrete: Concrete delivery cylinders allow for precise placement of concrete, ensuring that it is poured exactly where it is needed.
3. Efficient concrete delivery: Concrete convey cylinders can transport large volumes of concrete quickly and efficiently, helping to speed up construction projects.
4. Reduced labor costs: Using concrete delivery cylinders can help reduce the need for manual labor in the concrete pouring process, saving time and labor costs.
5. Improved safety: Concrete convey cylinders help to minimize the risks associated with manual concrete pouring, such as injuries from lifting and carrying heavy loads.
Overall, concrete delivery cylinders are a versatile and efficient tool for transporting and pouring concrete in a wide range of construction projects.
The specific applications of our convey cylinders / delivery cylinders are including below:
- Trailer Concrete Pump
- Truck-mounted Concrete Boom Pump/vehicle-Mounted Pump
- Low-Emission Truck-mounted Concrete boom Pump
- High-EmissionTruck-mounted Concrete Boom Pump
- And so on.
BENEFITS OF OUR CONCRETE PUMP DELIVERY CYLINDERS
– Built to last with durable materials and construction
– Precision engineering for a tight seal and efficient concrete delivery
– Compatible with various types of concrete pumps for versatility
– Easy to maintain and service for cost-effective operation
– Reliable performance for years of service
– Streamline your concrete pumping operations with our high-quality cylinders
– Trust in our expertise and experience to provide you with the best pump cylinders available.
– Contact us today to learn more about our products and how they can benefit your construction projects!
