Low friction and chemical resistance – Custom Xylan/PTFE coated solutions
Younglee provides custom-engineered U-bolts coated with Xylan or PTFE, offering superior chemical resistance and a very low friction coefficient. These assemblies are ideal for applications where thermal expansion requires the pipe to slide easily over the support without damaging the coating or the pipe wall.

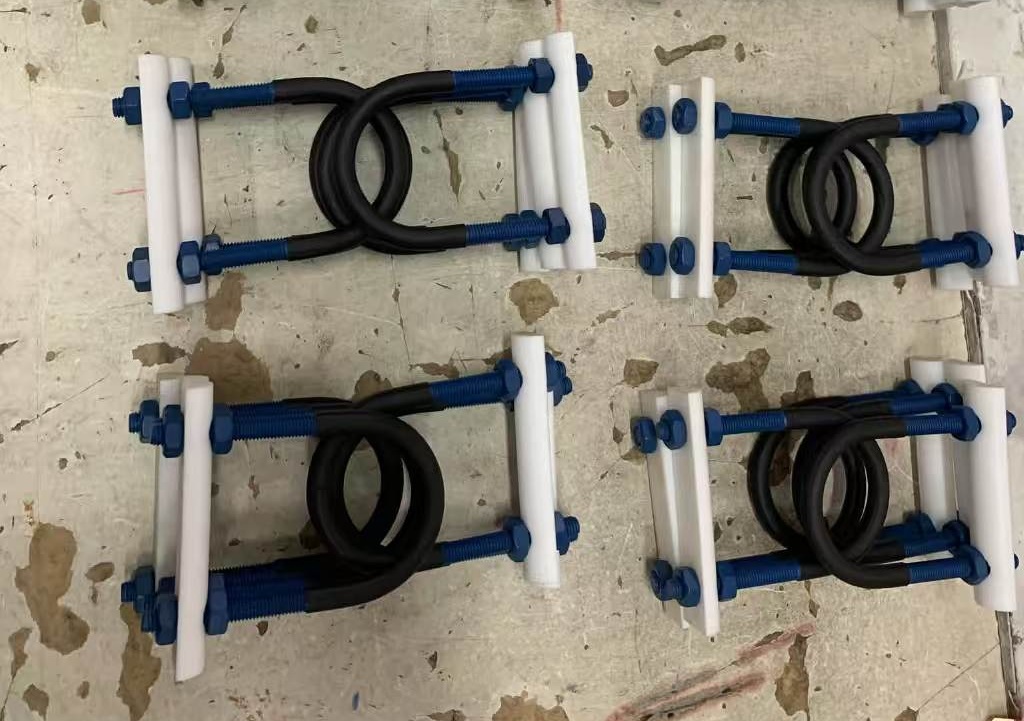

Consist of our Xylan coated U bolt with half round rod (I-rod equivalent)
- U bolt: The U bolt is usually with high grade carbon steel or stainless steel with Xylan coated.
- U bolt insulation: U bolt can be insulated with Polyolefin Heat-Shrink (Polyshrink) / Rubber sleeve or Rubber coating, and we can make the U bolts with PTFE sleeve coating also.
- Half round Rod: The U bolt can be supplied with a half round rod as the bottom saddle, the half round Rod is equal to I rod, made of Acetal(POM), PEEK, PEI(equal to I-ROD HT Amber), or PTFE (Teflon).
- Nuts: The nuts also can be Xylan coated, the nuts standard available: ASTM A194 2H, A194-8, A194-8M and so on.
- Washers: steel washers, stainless steel washers or PTFE washers are available on customer’s request.
Advantages of Xylan Coating
- Corrosion Resistance: Excellent protection against salt spray and chemicals.
- Low Friction: Reduces wear on both the bolt and the pipe.
- Color Coding: Available in various colors for easy identification of piping systems.
Technical Specifications
| Component | Material / Standard |
|---|---|
| Half Round Rod | Acetal(POM), PTFE, PEI, or PEEK |
| U-Bolt Coating | Xylan 1014 / Xylan 1424 / Xylan 1070 or other FluoroPolymer (Teflon /PTFE) Coated U bolt (color available in Blue, Green, Red, etc.) |
| U-Bolt Material | Carbon Steel (ASTM A193 B7, L7, A36, A516-60/70, etc) or Stainless Steel |
| Benefits | Chemical Resistance, Low Friction, Color Coding |
Send your drawing or specification to Younglee for a custom Xylan-coated solution.
