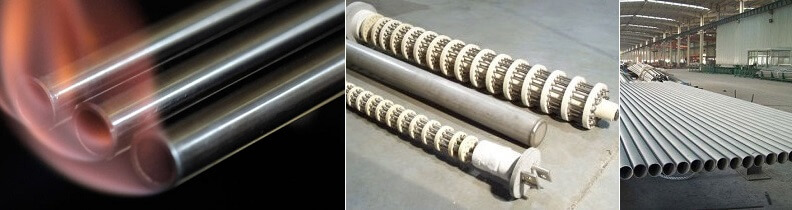

Furnace tube is one of the typical and main product of heat resistant steel pipes. This product is widely used in heat treatment industries and in machines such as tube furnaces & equipments where high temperature resistant is required.
Our factory is one of the professional manufacture of high temperature tubing / heat resistant pipes in China. Espeically for stainless steel 310S / 314 furnace pipes, our production process is very mature and product quality is in the high level and stable.
1) Product standards:
Stainless steel furnace pipes and high temperature pipes are usually manufactrued and inspected under below sandards:
- ASTM A 269, A312, EN 10216-5, SEW 470
- PED 97/23/EC, AD 2000
- NACE MR0175.
Other requirements, standards on customers requests.
2) Size range:
For heat resistant pipes we can produce from size O.D 16 mm to O.D 60.3 mm.
And the most popular sizes of furnace pipes for wire heat treatment use are O.D 27 mm x W.T 3 mm and O.D 34 mm x W.T 3.5 mm;
3) Materials / steel grades:
The most popular steel grades of Furnace pipes is TP 314 and TP310S; So furnace pipe is also known as 314 stainless steel pipe or 310S stainless steel pipe.
Other heat resistant steel grades also is available on customers requests, such as:
EN/DIN: 1.4541/1.4878, 1.4845, 1.4948,
ASTM: TP 347/347H, TP304H, TP 321/321H, TP 310/310S, 317L.
4) Advantages:
Younglee's furnace pipes are with many advantages than other factories, such as smooth surface, no cracks, clean inside surface, and high temperatrue resistance, high corrosion resistance, durable in use.
The quality of our furnace pipes is close to Sandvik, and our prices are much cheaper!
5) Working Temperature:
With the high quality heat resistant steels, the working temperature of our furnace pipes is Max. 1120 ºC (2048ºF)
6) Chief Application:
Younglee's stainless steel high temperature pipes and furnace pipes are mainly used to produce furnaces and in high temperature applications such as:
- - Wire annealing furnace
- Radiant tubes (radiation tubes)
- - Thermocouple protection tubes
- Muffle tubes
- Atmosphere sampling tubes
- Gas injection tubes
- Burner nozzles
Or used in various other high temperature applications where the working temperature is above 500 ºC.
|
